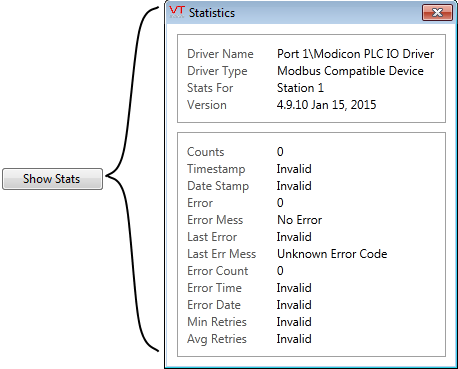

The Comm Statistics Button tag widget is used to draw a button that can be clicked to display communication statistics for either the device associated with the button, or all devices in your system.
* Does not use the Style Settings tag.
(Contents will vary by driver)

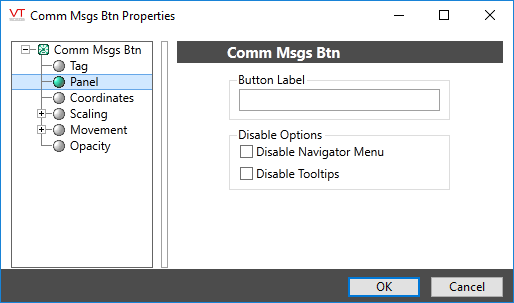

The properties dialog for this widget:
You can choose to display statistics for just the attached driver, or for all drivers.
Button Label
Provide the text (if any) that will be displayed on the button.
Disable Options
Disable selected operator-interaction features of this widget.
Analytics\Communications\Connection Status\
Analytics\Statistics\
Analytics\Diagnostics\
Each driver has its own version of the communication statistics dialog, as described in the following topics.
Allen-Bradley Statistics Dialog
CalAmp Diagnostic Driver Statistics Dialog
Campbell Scientific Array Driver Statistics Dialog
Campbell Scientific PakBus Driver Statistics Dialog
Enron Modbus Device Statistics Dialog
Fisher ROC Driver Statistics Dialog
GE Series 90 Driver Statistics Dialog
MDS Diagnostic Driver Statistics Dialog
Modbus Compatible Device Statistics Dialog
NMEA 0183 Driver Statistics Dialog
Omron FINS Driver Statistics Dialog
OPC Client Driver Statistics Dialog
