GridList

(System Library)

Description:	Draws a list in the style of a spreadsheet.
Returns:	Nothing
Usage:	Steady State only.
Function Groups:	Graphics
Related to:	GUITransform | Bevel | CheckBox | ColorSelect | DropList | DropTree | Edit | GridList | HScrollbar | Listbox | RadioButtons | SpinBox | SplitList | TextBox | ToolBar | VScrollbar
Format:	\System.GridList(Titles, Data, DataFormat, ColWidthsParm [, NumDataRowsParm, NumDataColsParm, GridListBGndParm, GridColorParm, GridLineWidthParm, GridStyleParm, RowHeightParm, TitleHeightParm, HCellPaddingParm, VCellPaddingParm, HScrollPosParm, VScrollPosParm, DisableVScroll, DisableHScroll, DisableColumnSizing, DisableSorting, DisableSelectedCell, DisableVGridLines, DisableHGridLines, LockFirstColumn , Sort, SelectedRow, SelectedColumn, GridFontParm, GetSortKeyScope, EnableBorderParm, CellTextColorParm, TitleTextColorParm, TitleBackColorParm, TitleGridColorParm, LockFirstColColorParm, CaseSortParm, DisableControlsParm, IsFocusableParm])
Parameters:

Data[I]      = Self()      { Module in which the CallBack exists };
DataForms[I] = "DrawCell"  { The CallBack module used to display a cell in this column };

GetSortKey
(
  Row         { Row index to get the sort key for         };
  Column      { Column index to get the sort key for      };
  Inverted    { Bool: TRUE if the order is being reversed };
)
Main [
  If 1;
  [
     Return(ToUpper(Data[Row][Column]));
  ]
]

Examples:

(See also, an  example in GUITransform)

1) An extremely simple grid of data:

GUITransform(0, 1, 1, 0,
             1 - 100, 500, 500, 1 - (100), 1,
             0, 0, 1, 0,
             0, 0, 0,
             \System\GridList(Titles { Column Titles Array },
                              Data   { Data Array          },
                              "%s"   { Format for Text     }));

Where:
Titles is a one dimensional array of titles, equal to the number of columns.
Data is a two dimensional array of values to display
The format is simply "%s" to display as strings.

2) A sparse array

   {initialize the data array}
   Titles[0] = "Name";
   Titles[1] = "Area";
   Titles[2] = "Description";
   Titles[3] = "I/O Device";
   Titles[4] = "Address";
   Data[0][0] = "Tag1";
   Data[1][0] = "Tag2";
   Data[2][0] = "Tag3";
   Data[0][1] = "Area1";
   Data[1][1] = "Area1";
   Data[2][2] = "I'm a tag";
   Data[1][3] = "PollDrvr1";
   Data[0][4] = "40001";
   DataForm   = "%s";

GUITransform(50, 500, 350, 50   { Reference rectangle         },
               1                { Scale Left                  },
               1                { Scale Bottom                },
               1                { Scale Right                 },
               1                { Scale Top                   },
               1                { No overall scaling          },
               0, 0, 1, 0       { No movement; visible; res   },
               0, 0, 0          { Not selectable              },
               \System.GridList(Titles  { Titles array         },
                                Data    { Data array           },
                                DataForm { Cell format         },
                                60     { Column widths array   },
                                3      { # Data rows           },
                                5      { # Data cols           },
                                15, 8  { Grid BGnd, Grid color },
                                1, 1 { Grid line width, line style},
                                30, 30 { Row/Title height      },
                                0, 0 { Horiz/Vert cell padding },
                                0, 0 { Horiz/Vert Scroll position },
                                1, 1 { Disable V/H scroll bars },
                                1    { Disable column sizing   },
                                1    { Disable Sorting         },
                                1    { Disable selected cell   },
                                0, 0 { Enable V/H grid lines  },
                                1    { LockFirstColumn         },
                                Invalid  { Sort                },
                                0        { SelectedRow         },
                                0        { SelectedColumn      },
                                \_DialogFont { GridFontParm    }));

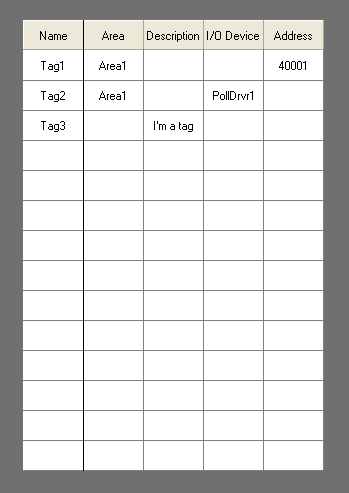

This code example will create a Grid List that looks like the following:
